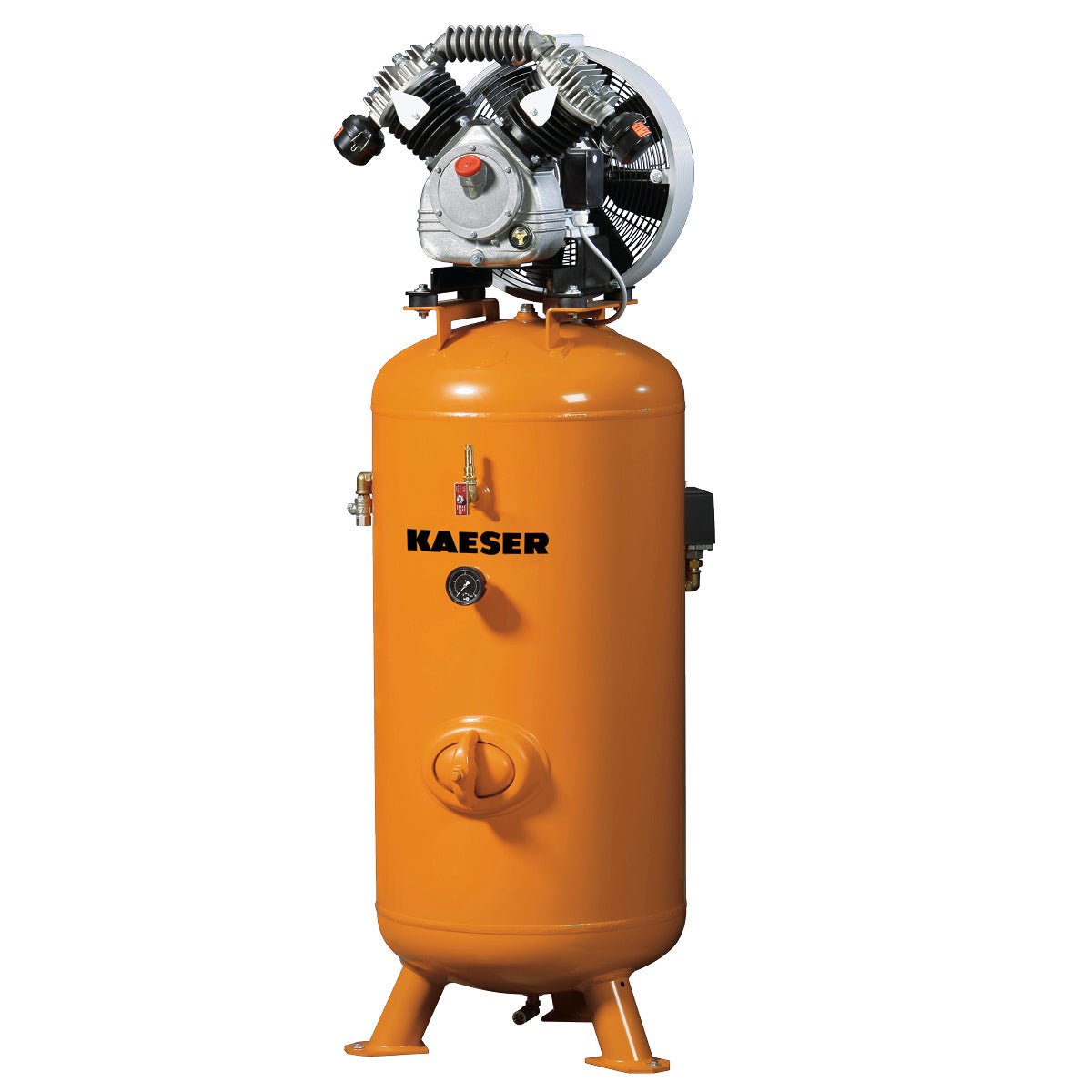

Kaeser piston compressor EPC 840-250 St 400/3/50
5.307,40 €
inkl. Mwst zzgl. Versand
Type: EPC 840-250 St "upright" version - the robust ones for the trade The following applies to KAESER-EUROCOMP piston compressors: the main components, the compressor block and the electric drive motor, are also "Made in Germany" in the highest craftsmanship quality. Users benefit from this quality with higher air performance...
Pillunate benefits
- Free shipping within Germany from €200
- 360° customer service
- Pay easily and securely
Dresses Size Chart
Dress Size Chart (Inches)
|
DRESSES SIZE IN INCHES |
||||
| SIZE | US/CAN | BUST | WAIST | HIPS |
| XS | 0 | 31"-32" | 24"-25" | 34"-35" |
| S | 2-4 | 33"-34" | 26"-27" | 36"-37" |
| M | 6-8 | 35"-36" | 28"-29" | 38"-39" |
| L | 10-12 | 37"-39" | 30"-32" | 40"-42" |
| XL | 14 | 40"-42" | 33"-35" | 43"-45" |
Dress Size Chart (cm)
|
DRESSES SIZE IN CM |
||||
| SIZE | US/CAN | BUST | WAIST | HIPS |
| XS | 0 | 78.7-81.2 | 60.9-63.5 | 86.3-88.9 |
| S | 2-4 | 83.8-86.3 | 66-68.5 | 91.4-93.9 |
| M | 6-8 | 88.9-91.4 | 71.1-73.6 | 96.5-99 |
| L | 10-12 | 93.9-99 | 76.2-81.2 | 101.6-106.6 |
| XL | 14 | 101.6-106.6 | 81.2-88.9 | 109.2-114.3 |
Swimwear Size Chart
Dress Size Chart (Inches)
|
SWIMWEAR SIZE IN INCHES |
||||
| SIZE | US/CAN | BUST | WAIST | HIPS |
| XS | 0 | 31"-32" | 24"-25" | 33"-34" |
| S | 2 | 33"-34" | 26"-27" | 35"-37" |
| M | 4 | 35"-36" | 28"-29" | 37"-38" |
| L | 6 | 37"-39" | 30"-32" | 39"-41" |
| XL | 8th | 40"-42" | 33"-35" | 42"-44" |
Shoes Size Chart
| US | EURO | UK | OUT OF | JAPAN | CHINA |
| 5 | 35-36 | 3 | 3.5 | 21.5 | 35 |
| 5.5 | 36 | 3.5 | 4 | 22 | 35.5 |
| 6 | 36-37 | 4 | 4.5 | 22.5 | 36 |
| 6.5 | 37 | 4.5 | 5 | 23 | 36.5 |
| 7 | 37-38 | 5 | 5.5 | 23.5 | 37 |
| 7.5 | 38 | 5.5 | 6 | 24 | 37.5 |
| 8th | 38-39 | 6 | 6.5 | 24.5 | 38 |
| 8.5 | 39 | 6.5 | 7 | 25 | 38.5 |
| 9 | 39-40 | 7 | 7.5 | 25.5 | 39 |
| 9.5 | 40 | 7.5 | 8th | 26 | 39.5 |
| 10 | 40-41 | 8th | 8.5 | 26.5 | 40 |
| 11 | 41-42 | 9 | 9.5 | 27.5 | 41 |
Delivery
All orders shipped with UPS Express.
Always free shipping for orders over US $250.
All orders are shipped with a UPS tracking number.
Returns
Items returned within 14 days of their original shipment date in same as new condition will be eligible for a full refund or store credit.
Refunds will be charged back to the original form of payment used for purchase.
Customer is responsible for shipping charges when making returns and shipping/handling fees of original purchase is non-refundable.
All sale items are final purchases.
Help
Give us a shout if you have any other questions and/or concerns.
Email: help@example.com
Phone: +1 (23) 456 789
Type: EPC 840-250 St "upright" version - the robust ones for the trade
The following applies to KAESER-EUROCOMP piston compressors: the main components, the compressor block and the electric drive motor, are also "Made in Germany" in the highest craftsmanship quality. Users benefit from this quality with higher air performance and a longer service life, among other things. EUROCOMP compressors are designed - and built - for years of operation in tough workshop use!
Technical data (volume flow and performance data according to ISO 1217:2009, Annex C)
- Flow rate at 6 bar: 590 l/min
- Flow rate at 8 bar: 530 l/min
- Max. overpressure: 10 bar
- Compressor block shaft power: 4.0 kW
- Synchronous nominal speed: 1500 rpm
- Protection class drive motor: IP 54
- Electrical supply: 400 V / 3 Ph / 50 Hz
- Number of cylinders: 2
- Volume pressure tank: 250 l
- Compressed air connection: G 1/2
- Sound pressure level: 78 dB(A)
- Dimensions (width x depth x height): 650 x 710 x 1820 mm
- Mass: 156 kg
Technical changes reserved.
Key product benefits of the KAESER EPC 840-250 ST piston compressor
KAESER compressor block
The heart, the compressor block, is manufactured in Germany at the KAESER factory in Coburg. Pistons, piston rings, connecting rods, bearings and crank flange are particularly robust. This guarantees quality and reliability.
Low compressed air temperatures
With numerous cooling fins, additional cooling pins in the compressed air outlet and a large fan wheel, the highly efficient cooling system of the EUROCOMP piston compressors keeps compressed air and oil temperatures low. This increases the availability and service life of the compressor and air tools. The special shape of the aluminum ring profile aftercooler (from 3 kW) also offers effective protection against accidental contact.
With numerous cooling fins, additional cooling pins in the compressed air outlet and a large fan wheel, the highly efficient cooling system of the EUROCOMP piston compressors keeps compressed air and oil temperatures low. This increases the availability and service life of the compressor and air tools. The special shape of the aluminum ring profile aftercooler (from 3 kW) also offers effective protection against accidental contact.
Corrosion-free stainless steel valves
The lift-limited valves have stainless steel valve tongues. This improves the heat dissipation and avoids the formation of oil carbon. The sealing behavior of the valves and their service life are also significantly extended in this way.
The lift-limited valves have stainless steel valve tongues. This improves the heat dissipation and avoids the formation of oil carbon. The sealing behavior of the valves and their service life are also significantly extended in this way.
Maintenance-free transmission
Drive motor and compressor block are directly connected to each other. In this way, the driving force is transmitted without loss. Low speeds ensure greater efficiency and a longer service life for all moving components.
Drive motor and compressor block are directly connected to each other. In this way, the driving force is transmitted without loss. Low speeds ensure greater efficiency and a longer service life for all moving components.
