Kaeser screw compressor SXC 8 11.00 bar SC2 without LT 400 V/50 Hz EU
15.529,50 €
inkl. Mwst zzgl. Versand
KAESER screw compressor Type: SXC 8 (lgk.) Complete system SXC The SXC 8 is a complete compressed air station in the smallest of spaces: "Connect and work" is the motto. Screw compressor, refrigeration dryer and compressed air tank form a ready-to-operate unit with the modern rotation-sintered double-walled PE hood. Energy...
Pillunate benefits
- Free shipping within Germany from €200
- 360° customer service
- Pay easily and securely
Dresses Size Chart
Dress Size Chart (Inches)
|
DRESSES SIZE IN INCHES |
||||
| SIZE | US/CAN | BUST | WAIST | HIPS |
| XS | 0 | 31"-32" | 24"-25" | 34"-35" |
| S | 2-4 | 33"-34" | 26"-27" | 36"-37" |
| M | 6-8 | 35"-36" | 28"-29" | 38"-39" |
| L | 10-12 | 37"-39" | 30"-32" | 40"-42" |
| XL | 14 | 40"-42" | 33"-35" | 43"-45" |
Dress Size Chart (cm)
|
DRESSES SIZE IN CM |
||||
| SIZE | US/CAN | BUST | WAIST | HIPS |
| XS | 0 | 78.7-81.2 | 60.9-63.5 | 86.3-88.9 |
| S | 2-4 | 83.8-86.3 | 66-68.5 | 91.4-93.9 |
| M | 6-8 | 88.9-91.4 | 71.1-73.6 | 96.5-99 |
| L | 10-12 | 93.9-99 | 76.2-81.2 | 101.6-106.6 |
| XL | 14 | 101.6-106.6 | 81.2-88.9 | 109.2-114.3 |
Swimwear Size Chart
Dress Size Chart (Inches)
|
SWIMWEAR SIZE IN INCHES |
||||
| SIZE | US/CAN | BUST | WAIST | HIPS |
| XS | 0 | 31"-32" | 24"-25" | 33"-34" |
| S | 2 | 33"-34" | 26"-27" | 35"-37" |
| M | 4 | 35"-36" | 28"-29" | 37"-38" |
| L | 6 | 37"-39" | 30"-32" | 39"-41" |
| XL | 8th | 40"-42" | 33"-35" | 42"-44" |
Shoes Size Chart
| US | EURO | UK | OUT OF | JAPAN | CHINA |
| 5 | 35-36 | 3 | 3.5 | 21.5 | 35 |
| 5.5 | 36 | 3.5 | 4 | 22 | 35.5 |
| 6 | 36-37 | 4 | 4.5 | 22.5 | 36 |
| 6.5 | 37 | 4.5 | 5 | 23 | 36.5 |
| 7 | 37-38 | 5 | 5.5 | 23.5 | 37 |
| 7.5 | 38 | 5.5 | 6 | 24 | 37.5 |
| 8th | 38-39 | 6 | 6.5 | 24.5 | 38 |
| 8.5 | 39 | 6.5 | 7 | 25 | 38.5 |
| 9 | 39-40 | 7 | 7.5 | 25.5 | 39 |
| 9.5 | 40 | 7.5 | 8th | 26 | 39.5 |
| 10 | 40-41 | 8th | 8.5 | 26.5 | 40 |
| 11 | 41-42 | 9 | 9.5 | 27.5 | 41 |
Delivery
All orders shipped with UPS Express.
Always free shipping for orders over US $250.
All orders are shipped with a UPS tracking number.
Returns
Items returned within 14 days of their original shipment date in same as new condition will be eligible for a full refund or store credit.
Refunds will be charged back to the original form of payment used for purchase.
Customer is responsible for shipping charges when making returns and shipping/handling fees of original purchase is non-refundable.
All sale items are final purchases.
Help
Give us a shout if you have any other questions and/or concerns.
Email: help@example.com
Phone: +1 (23) 456 789

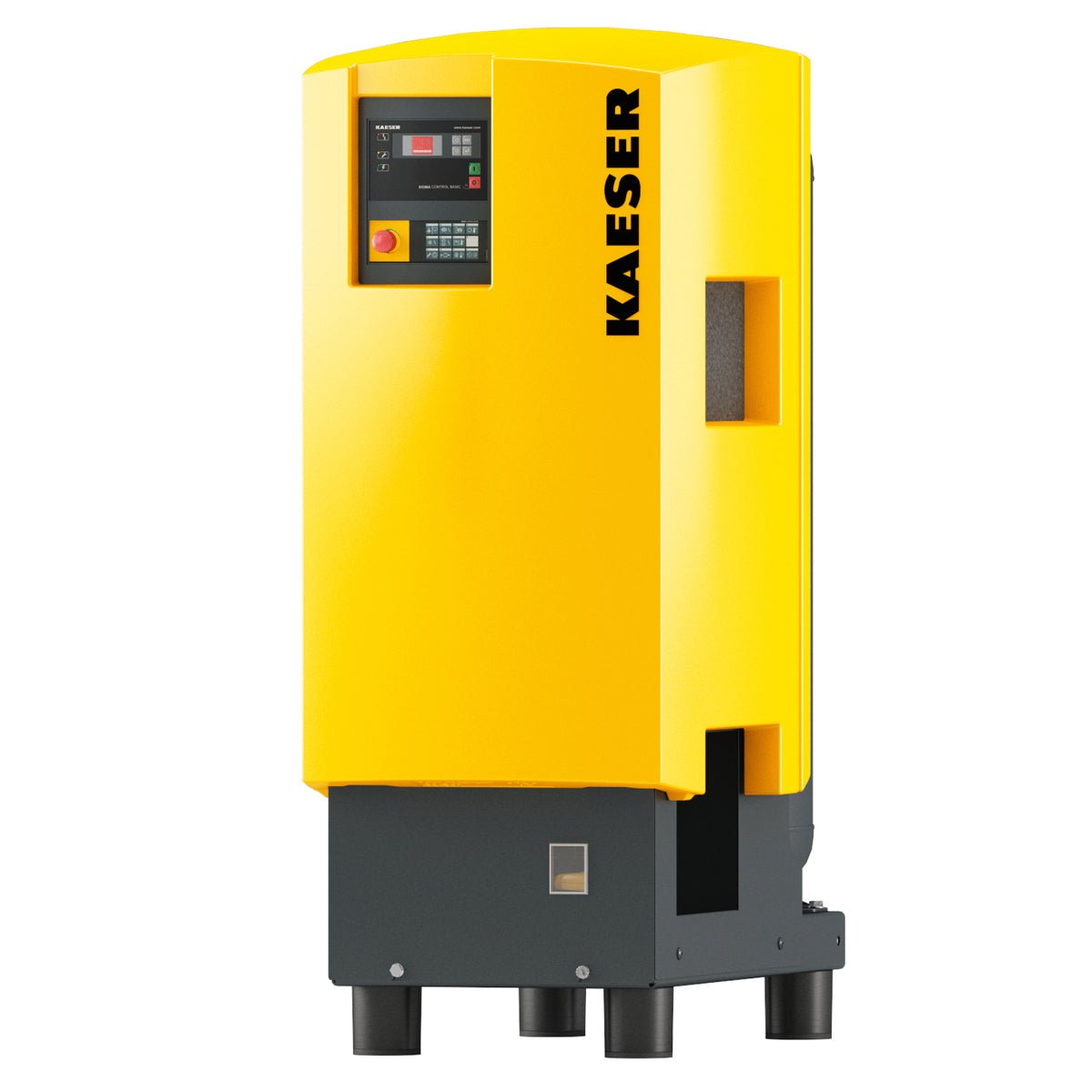

KAESER screw compressor
Type: SXC 8 (lgk.)
Complete system SXC
The SXC 8 is a complete compressed air station in the smallest of spaces: "Connect and work" is the motto. Screw compressor, refrigeration dryer and compressed air tank form a ready-to-operate unit with the modern rotation-sintered double-walled PE hood. Energy efficiency, ease of maintenance, durability and optimal coordination of all components guarantee years of reliable and economical use. The SXC is the ideal solution for trade companies looking for a compact compressed air station.
Technical data (performance parameters at 11.0 bar operating pressure, based on the entire system, including fan. According to ISO 1217:2009 Annex C.)
- Flow rate at 11.0 bar (g): 0.67 m³/min
- Electrical power consumption of the entire system at 11.0 bar (overpressure): 6.2 kW
- Max. overpressure: 11.00 bar
- Drive motor efficiency at full load: 89.2%
- Drive motor efficiency class: IE3
- Rated power drive motor: 5.5 kW
- Drive motor speed: 2930 rpm
- Protection class drive motor: IP 54
- Electrical supply: 400V / 3 / 50Hz
- Sound pressure level: 69 dB(A)
- Pressure loss refrigeration dryer: 0.10 bar
- Pressure dew point at ambient temperature +20°C, rel. Humidity 30%: 6 °C
- Refrigerant: R-513A
- Refrigerant charge: 0.24 kg
- Global warming potential GWP: 631
- CO2 equivalent: 0.15 t
- Compressed air tank volume: 215 l
- Compressed air connection: G 3/4
- Capacity cooling oil: 2.8 l
- Cooling oil type compressor: SIGMA FLUID MOL
- Dimensions (W x D x H): 620mm x 980mm x 1480mm
- Mass: 300 kg
Technical changes reserved.
Key product benefits of the KAESER screw compressor
KAESER compressor block with energy-saving SIGMA PROFILE
Every KAESER rotary screw airend has rotors with the energy-saving SIGMA PROFILE. Careful manufacture and adjusted precision roller bearings ensure a long service life and high reliability. Single-stage compression with cooling fluid injection for optimal cooling, lubrication and sealing of the rotors.
Efficient cooling
Innovative cooling solutions are another hallmark of KAESER compressors. The SXC systems are no exception, three fans are installed for optimal cooling. A fan (with a separate drive motor) cools the fluid in the screw compressor. It is switched on and off by SIGMA CONTROL 2 depending on the temperature. The second fan is mounted on the main propulsion motor and ensures the cooling of the propulsion motor. The third fan cools the condenser of the refrigeration dryer. Reliable cooling of the SXC systems is achieved with this cooling concept.
Maintenance friendly
After simply lifting off the light housing hood, all maintenance points are easily accessible. The electronic condensate drain can be checked through a grid. The SXC system is extremely easy to maintain.
Easiest installation
SXC systems require almost no installation effort: Only the power connections for the compressor and dryer and the connection to the condensate treatment must be established. And compressed air prepared for the application is already available.
Decisive product advantages of the all-in-one complete solution
...with energy-saving screw compressor
Saving energy also pays off with smaller screw compressors: e.g. For example, 20% less energy consumption with a 5.5 kW system and a running time of 1000 h means a saving of 1100 kWh and 0.66 tons less CO2 emissions per year.
...with refrigeration dryer
The refrigeration dryer is thermally isolated below the screw compressor. The centerpiece is a stainless steel plate heat exchanger with an integrated condensate separator. The condensate is reliably discharged via an electronic ECO DRAIN condensate drain. This ensures reliable drying of the compressed air.
...with storage tank
SXC systems are equipped with an internally coated compressed air tank. The container performs three functions: cooling compressed air, pre-separating condensate and storing compressed air. The resulting condensate is electronically controlled and drained safely and economically.
Decisive product advantages Control SIGMA CONTROL 2
control systems
- The control unit, manufactured according to industry standards, is equipped with a clear plain text display with 30 languages and robust keys. The system with integrated inputs and outputs and the power pack also includes a web server for visualizing all important operating data on a connected PC;
- Light-emitting diodes (LED) in traffic light colors to display the operating status facilitate monitoring.
- Timer for compressor functions (on, off) or external outputs expand the possibilities.
Hardware
- Powerful processor hardware; all parts and components designed for industrial conditions
- Graphic display, LED displays and raised membrane keys; battery-buffered real-time clock
- Accurate electronic pressure transmitter
switch cabinet
- Dust and splash-proof, IP 54
interfaces
- SD card slot for updates or storage of important operating data
- RFID (Radio Frequency Identification) reader, Ethernet
Approvals and Certifications
- CE, cUlus, EMC;
Kaeser screw compressor SXC 8 11.00 bar SC2 without LT 400 V/50 Hz EU
